Pedestrian Grating

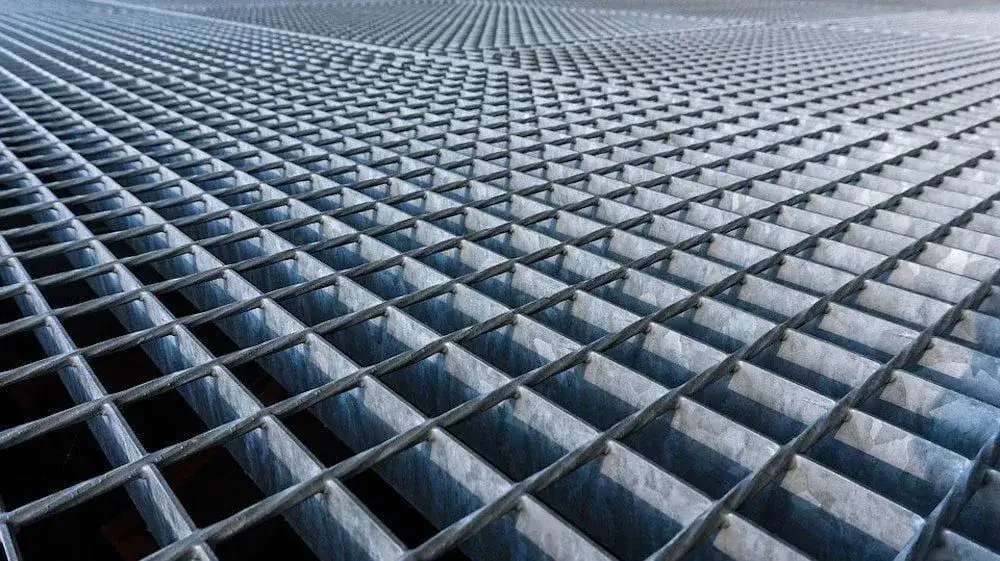

Serrated Pedestrian Grate teeth bite wet or oily soles. Fewer slips on site.
Itemized quote within 24 hours · Free drawing review included
In-house weld & press lines
Close-mesh and welded pedestrian panels under one roof
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Pedestrian-duty comparison
What Changes When Only Feet Use the Panel
Pedestrian grating is a duty class, not just a keyword. When feet are the only load, the engineering question moves from bar strength to opening size — what a heel, a cane tip or a paw can drop into — and to how the floor feels on a long walk. Here is how the panel choices compare.

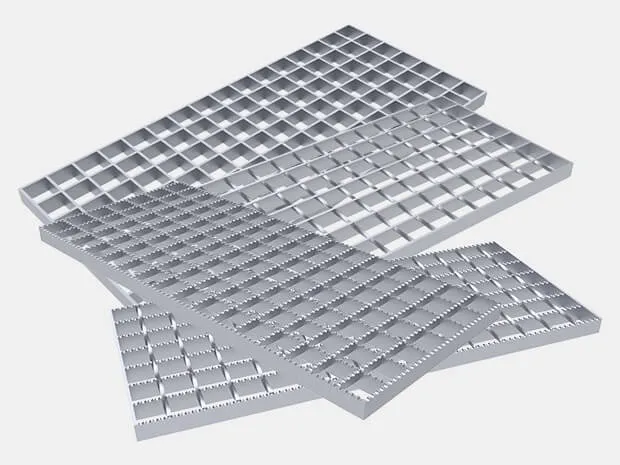

| Dimension | Close-mesh plainPedestrian default | Welded open mesh | Serrated tops |
|---|---|---|---|
| Openings underfoot | Down to 11 / 11 mm — heels, cane tips and paws stay on the surface | 30 / 40 / 60 mm centers — a boot heel bridges the bars; footwear matters | Any mesh above, with teeth sheared into the bar top |
| Bar sections | Smaller flat-bar sections carry foot loads with plenty of margin | Full 20×3 – 100×8 mm range where trolleys or carts also cross | Serrated variant of the same bar range |
| Comfort underfoot | Many contact points — an even, quiet stride over long walks | Fewer edges underfoot; a livelier feel on long runs | Teeth interlock with the sole wet or dry — geometry, not a rating |
| Drainage & cleaning | Fine slots still shed rain and wash water; light debris sweeps off | Open mesh drains fastest and sheds packed debris | Open mesh drains while the teeth keep contact |
| Public-space fit | Sidewalks, plazas, school yards, tree pits, entrance floors | Plant floors, service corridors, catwalks with controlled footwear | Stairs, ramps and frost-prone entries where wet soles arrive |
| Our supply | In-house — press-lock machine runs close mesh | In-house — electro-forging line | In-house — serrated variants on both lines |
Not sure which mesh fits your foot traffic? Send your drawings — we will spec it inside the 24-hour quote.
How the geometry works
The Mechanics of a Pedestrian-Friendly Opening
1 · Heels stay on top
A shoe heel is wider than an 11 / 11 mm opening, so it always lands on at least two bearing bars. The same panel walks well in heels, work boots or running shoes — no catching, no tipping.
2 · Cane tips and paws stay up
White-cane tips, crutch ferrules and dog paws are the smallest things that cross a public floor. Close mesh keeps them on the steel instead of in it — comfort spacing chosen for every kind of footfall.
3 · Comfortable, and it still drains
Closing the mesh does not close the floor. Rain and wash water still pass through the fine slots, so a plaza or sidewalk stays puddle-free while the dense bar spacing keeps the walking surface even underfoot.
Why specify pedestrian-duty
Why Specifiers Choose Pedestrian Bar Grating
A surface that grips
Serrated Pedestrian Grate teeth bite wet or oily soles — fewer slips on site. The grip is geometry: teeth sheared into the bar top interlock with the sole, working the same wet or dry. Ask for serrated or plain in your quote.
Any size, factory-direct
Custom pedestrian grating cut and banded to your drawings — panels to your runs, not to a stock list. Factory-direct with no middlemen, and free drawing review inside the 24-hour quote.
Walkways and stairs covered
Pedestrian grating for walkways and stairs — flat close-mesh floors for the run, serrated treads with nosing options where the route changes level. One specification covers the whole route.
Public-space contexts
Public Spaces: Sidewalks, Plazas, School Yards
Where the public crosses without briefing, the panel has to forgive every kind of footfall — heels, wheels, canes, paws — and still drain the rain that lands on it. These are the contexts we spec pedestrian grating for.
Sidewalks & plazas
Flat, heel-proof surfaces over tree pits and drainage runs — pedestrian-friendly gully grating keeps stormwater moving while the walking line stays even.
School yards & campuses
Comfort spacing for young feet and small wheels — close mesh keeps scooters rolling and cannot swallow a dropped key or a cane tip.
Stairs & entrances
Where the route changes level, serrated treads with nosing options carry the same pedestrian duty — wet soles arrive at every door.
Walkways over drains
Covered channels and gully lines underfoot: rain passes through the mesh, heels do not — drainage and walking surface in one panel.
Specifications
Pedestrian Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated tops |
| Bar spacing | 30 / 40 / 60 mm centers (welded) · down to 11 / 11 mm (press-locked) |
| Cross bar | Twisted square or round, per specification |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Pedestrian options | Close mesh for heels, cane tips and paws · serrated or plain tops |
Materials & test documents
Pedestrian behavior is geometry — the paperwork covers the steel and the coating behind it. Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in, the first of our five QC stages. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Load tables & calculators → · Heel-proof geometry explained →
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Pedestrian panels produced to MBG 531 reference practice, with weld and joint inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before pedestrian panels are released.
CE & SGS tested
Certified & tested, reports on request — material and coating documents you can verify, not a certificate wall.
Custom made
Custom Sizes, Cut and Banded to Your Drawings
Send your drawing
Panel sizes, areas and who walks them — heels, trolleys, paws, cane users — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. The mesh recommendation for your foot traffic is included. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Ask for a Pedestrian Grate quote today — send your areas and foot traffic, and an itemized quote lands within 24 hours with the mesh recommendation included. Samples ready in 5–7 days.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What mesh size keeps heels, canes and paws safe on pedestrian grating?
Press-locked close mesh runs down to 11 / 11 mm openings — small enough that a shoe heel, a cane tip or a paw cannot drop through, and dense enough to put many bar edges underfoot for a comfortable stride. Standard welded meshes on 30 / 40 / 60 mm centers stay in play where footwear is controlled; we recommend the mesh for your zone in the quote.
Can pedestrian grating take trolleys or service vehicles crossing it?
Pedestrian-duty panels are sized for foot traffic and use lighter bar sections than floors built for wheels. Where trolleys, sweepers or occasional vehicles cross, we specify thicker bearing bars and closer centers instead — tell us the traffic in your RFQ and the panel is sized to it.
How fast can I get a pedestrian grating quote and samples?
A quote lands within 24 hours, samples ship in 5–7 working days, and mass production runs 15–25 working days after drawing confirmation — hot-dip galvanizing included in all three.
