Mesh geometry
Grating Mesh Spacing: What Each Opening Suits
Grating mesh — often quoted as wire grating, steel grating mesh or open mesh flooring — is defined by one decision: the opening. We form welded mesh at 30 / 40 / 60 mm centers on the electro-forging line, and press-locked close mesh at 11 / 11 mm for heel-proof floors. Here is what each spacing is for.
| Mesh spacing | How we form it | What it suits | Heel-proof |
|---|---|---|---|
| 30 mm centers | Welded — in-house welding line | The densest welded mesh: fine debris falls through, high load stays up — platforms, plant flooring, mezzanines | No — shod industrial traffic |
| 40 mm centers | Welded — in-house welding line | The balanced standard for walkways and stairs: strong footing with free drainage and airflow | No — shod industrial traffic |
| 60 mm centers | Welded — in-house welding line | Maximum openness for water — trench covers and drainage flooring where flow matters more than footfall | No — light traffic areas |
| 11 / 11 mm close mesh | Press-locked — in-house press line | Heel-proof public floors, tree pits, facade infill, fine platforms where small items must not drop through | Yes — public and municipal floors |
Not sure which opening your traffic needs? Send your drawings — we will spec it inside the 24-hour quote.
Mesh, drawn plain
The Same Panel, Two Mesh Densities

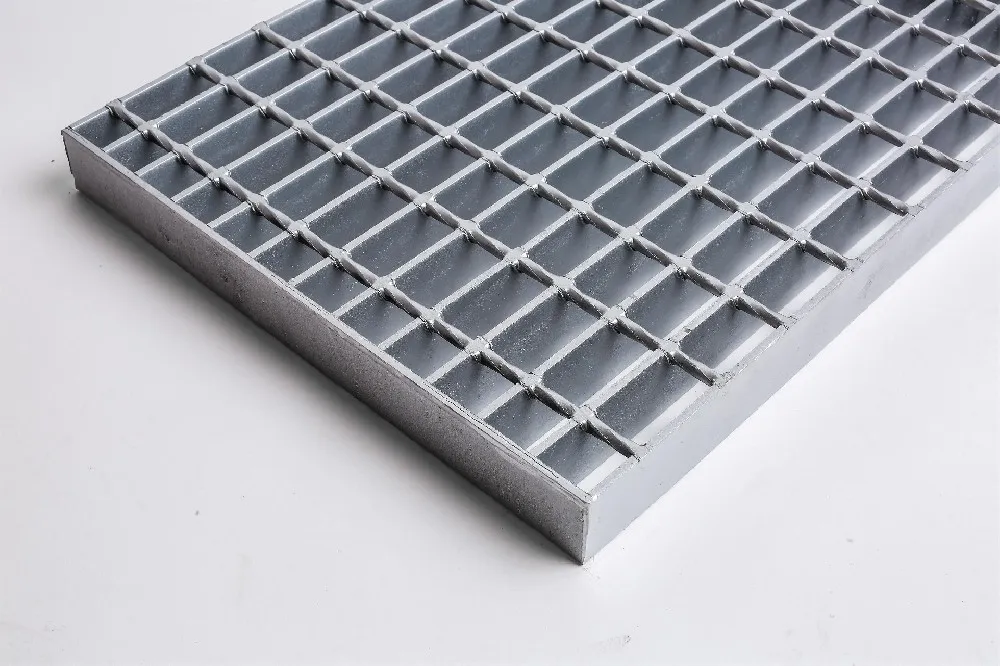

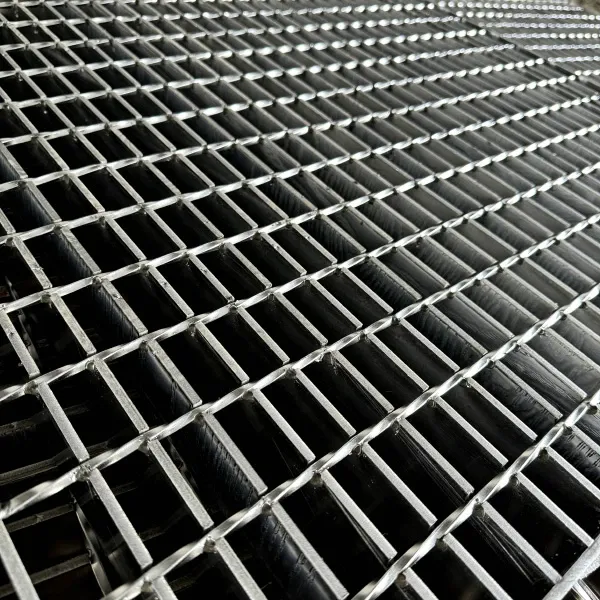

1 · Welded open mesh
Bearing bars and cross bars are resistance-forged together at every intersection — open mesh that carries wheels and boots at any span.
2 · Press-locked close mesh
Notched bearing bars and cross bars are pressed together mechanically — dense, perfectly flat mesh with no weld heat distortion.
3 · Heel-proof by geometry
At 11 / 11 mm, a shoe heel, a paw and most litter stay on the surface — open mesh flooring approved for public concourses, not just plant floors. Wider welded mesh trades that for load and flow.
Why mesh floors
Why Buyers Specify Open Mesh Flooring
Ventilated mesh flooring
Air, light and liquids pass straight through the mesh — nothing pools, nothing hides. The floor dries itself, which is why grating mesh is the default where washdown or weather meets steel.
Anti-slip underfoot
Plain mesh for dry zones, serrated bearing bars for wet or oily ones — the same mesh geometry with a grippier surface. Tell us the duty; we quote the right bar.
Custom mesh to your drawings
Any spacing we form, welded or press-locked, cut and banded to your drawings — with free drawing review inside the 24-hour quote. Small trial orders welcome.
Applications
Where Grating Mesh Works
Pick the opening by what walks or rolls over it — heels, boots or wheels — and by what must pass through it.
Public & municipal floors
11 / 11 mm close mesh for concourses, tree pits and facades — heel-proof and flat.
Platforms & walkways
30 / 40 mm welded mesh under boots — load-rated flooring with debris fall-through.
Trench & drainage covers
60 mm centers for maximum water flow across trench drains and gullies.
Mesh treads & landings
Grating mesh cut into stair treads and landings, nosing and banding included.
Specifications
Grating Mesh Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Welded mesh centers | 30 / 40 / 60 mm |
| Close mesh option | 11 / 11 mm, press-locked (heel-proof) |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Custom panels | Cut and banded to your drawings |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Mesh panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Mesh panels produced to MBG 531 reference practice, with joint inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized mesh batch before release.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Custom Mesh Spacing, Cut and Banded to Your Drawings
Send your drawing
Mesh pattern, panel sizes, loads, quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Get a factory quote in 24 hours — mesh flooring from small MOQ. Send panel sizes and mesh spacing, and drawing review is included.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the mesh lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
Which mesh spacing is heel-proof?
Openings of 11 / 11 mm press-locked close mesh keep shoe heels and paws on the surface, which is why we recommend it for public floors, tree pits and facade infill. Welded mesh at 30 / 40 / 60 mm centers is made for shod industrial traffic — specify it for platforms and trench covers, not concourses.
What is the lead time for grating mesh panels?
Samples ship in 5–7 working days and mass production runs 15–25 working days after drawing confirmation, both including hot-dip galvanizing. Rush production in 10–15 days is possible with a surcharge — ask in your quote.
Do you accept small trial orders of mesh flooring?
Yes — small trial orders are welcome. Pricing is itemized per m² or per ton in your quote; FOB Tianjin as standard, EXW or CIF negotiable. We do not publish a fixed price list.
