Floor Grating

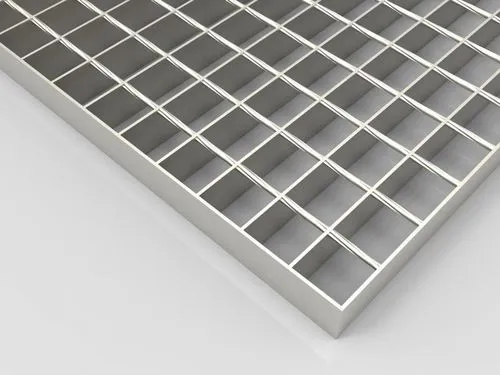

Steel floor grating, serrated or plain, welded or press-locked, made to order.
Itemized quote within 24 hours · Free drawing review included
Welded & press-locked floors
Both floor panel lines produced in-house
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
The flooring decision
Open Mesh vs Solid Plate: Choosing the Walking Surface
A plant floor is a drainage decision as much as a load decision. Here is how open-mesh floor grating compares with solid steel plate where people walk — including the honest case where plate or close mesh wins.
| Dimension | Open-mesh floor grating | Solid steel plate |
|---|---|---|
| Drainage | Water, oil and washdown spill straight through the walking surface | Liquids pool on top; the floor needs falls, kerbs and drains |
| Ice, snow & mud | Falls through the mesh — no standing film to freeze on | Thin films freeze into a slip hazard; mud builds up |
| Dead load | Open construction puts less weight on the support steel | Heavy panels; framing must carry the plate itself as well as traffic |
| Light & ventilation | Air and daylight pass through to the level below | Blocks light and airflow completely |
| Underfoot grip | Plain or serrated bars chosen by traffic and wetness | Checker pattern only; wet performance is limited |
| Small objects | Tools and fasteners can drop through — go close mesh where they must not | Nothing falls through — the safe answer over busy areas below |
Torn between mesh and plate for your floor? Send your drawings — we will spec it inside the 24-hour quote.
Load direction & deflection
How Floor Grating Carries Weight
Three rules decide whether a floor feels solid underfoot: which way the bearing bars run, how far they span, and what walks across them. Get these right and the mesh takes care of itself.
1 · Bearing bars span the supports
The bearing bars — the taller set — run across the supporting beams and carry the floor load. Cross bars only hold the bearing bars at pitch and spread a point load to its neighbours, so panels are always laid with bearing bars perpendicular to the steelwork beneath.
2 · Deflection is a span decision
Every floor deflects a little underfoot, and the sag grows steeply as the span lengthens. Bar height drives stiffness far more than bar thickness — an under-height floor feels springy long before it is at risk. Send us span and load; load tables are available on request.
3 · Foot traffic sets the surface
Plain bars suit clean, dry indoor floors; serrated bars bite into wet or oily soles and are the default for outdoor and process floors. Where heeled footwear crosses the floor, press-locked close mesh at 11 / 11 mm keeps every opening heel-proof.
Carrying heavier traffic than feet? Heavy-duty steel floor grating steps up bar height for pallet trucks and vehicles. · Deflection guidance and calculators →
Why open mesh
Why Specifiers Choose Open-Mesh Floor Grating
Anti-slip underfoot
Serrated bearing bars give wet or oily soles something to bite into, and the open pattern leaves nothing to skid on — drainage through the floor, not across it.
Light yet strong
Open mesh strips out the dead weight of solid plate while the bearing bars carry the full traffic load — lighter panels to handle on site and less weight for the support steel to carry.
Custom sizes from small MOQ
Flooring grating cut and banded to your drawings, bay by bay — trial orders welcome, so one platform can be piloted before the whole plant follows.
Applications
Where Floor Grating Works
Anywhere the walking surface has to shed water, stay visible and carry traffic over open steelwork — that is floor grating country.
Plant walkway floors
Elevated routes between machines — open mesh keeps the path dry and the level below lit.
Mezzanine & platform floors
Load-rated flooring over support steel, sized by span and deflection instead of guesswork.
Wet process & washdown floors
Spills pass through the floor instead of pooling underfoot — the natural floor for food and process areas.
Stair landings & treads
Matching treads and landing covers ordered with the floor — one drawing set, one shipment.
Specifications
Steel Grating Flooring Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers · close mesh to 11 / 11 mm (press-locked) |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m in the bearing bar (span) direction |
| Load direction | Marked on every shop drawing; bearing bars across supports |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Custom sizes | Cut and banded to drawings — trial orders welcome |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Floor panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Load tables & span guidance → · Panel dimensions explained →
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Floor panels produced to MBG 531 reference practice, with joint inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Floor Panels Cut and Banded to Your Drawings
Send your floor plan
Bays, spans, loads and quantities — or photos and a sketch. Drawing review is free, and we check load direction before anything is cut.
Quote within 24 hours
Itemized per panel, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings with the load direction marked ship with every order.
Factory-direct quote
Get a Factory Quote on Floor Grating
Send spans, loads and floor areas — gratings, treads and covers can go in one order, and an itemized factory quote lands within 24 hours.
- Load direction and span checked on every drawing before cutting
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Five-stage QC, from MTC verification at goods-in to final inspection
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
Which way should floor grating panels be laid?
With the bearing bars running across the supporting beams — the bearing bars carry the floor load and set the span, while cross bars only hold spacing. A panel laid the wrong way deflects far more than its rating. We mark the load direction on every shop drawing before cutting and banding.
What is the lead time for floor grating?
Samples ship in 5–7 working days and mass production runs 15–25 working days after drawing confirmation, both including hot-dip galvanizing. Rush production in 10–15 days is possible with a surcharge — ask in your quote.
How is floor grating shipped and priced?
Shipped worldwide from Tianjin Port — FOB Tianjin as standard, EXW or CIF negotiable. Pricing is itemized per m² or per ton in your quote; we do not publish a fixed price list.
