Steel Grating Platform
Safe, non-slip steel grating platform for daily plant traffic, from one factory.
Factory-direct from Dengtai, Shijiazhuang — FOB Tianjin, itemized quote within 24 hours · Free drawing review
In-house weld & press lines
Welded, press-locked and stainless panels under one roof
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Duty classes
Steel Grating Platform by Duty: Access, Working, Mezzanine
A platform is a floor people stand on, not a route they pass over. That single difference drives every specification on this page: the load framing, the support spacing on your steel grid, the bearing bar that spans it, and the toe plate that closes the open edge. Whether your drawing says steel grating platform, bar grating platform or metal grating platform, the panel family is the same — the duty class is what we quote against.
| Dimension | Access platform | Working platform | Mezzanine floor |
|---|---|---|---|
| Primary duty | Short stops — inspection rounds, gauge reads, valve reach | Crews occupy it for hours with tools, parts and hand carts | A permanent floor above the floor — storage, packing, plant |
| Load framing | Lightest grid: panels span between stringers on widely set supports | Beam grid with closer supports wherever carts and staging run | Full beam grid, bays cut to the beam spacing on your drawing |
| Support spacing logic | Wider spacing accepted — bar size steps up to carry it | Support spacing tightened where the load lives, dropping the bar size | Support spacing set by the mezzanine frame; panels follow the short span |
| Bearing bars we quote | 20×3 to 30×3 mm, plain or serrated | 40×4 up to 100×8 mm on 30 / 40 mm centers | 40×4 to 60×5 mm, banded edges all round |
| Mesh choice | 40 / 60 mm — sheds rain and debris, boot-friendly | 30 / 40 mm; close mesh where small parts would drop through | 30 / 40 mm, with close mesh banded into edge zones |
| Surface | Plain for covered dry interiors | Serrated where washdown, oil or weather reach the floor | Serrated or plain per zone under one order |
| Edges & companion framing | Banded edges, clips to stringers | Banded edges plus toe plates at every open side | Banded edges, toe plates and kick boards at open sides |
| Finish | Hot-dip galvanized after fabrication | HDG standard; SS304 / SS316 where washdown is constant | HDG standard, paint optional per specification |
Not sure which class your drawing describes? Send your drawings — we will spec it inside the 24-hour quote, support spacing and all.
How it is framed
Framing a Working Platform: Supports, Panels, Toe Plates
1 · Set the support grid
Start from the steel you already have. Bearing bars span the short direction across the supports, so the support spacing on your grid — not a catalog page — decides the bar. Tighten the grid and the bar size drops; widen it and the bar steps up.
2 · Fill the bays
Panels are cut to the bay and banded all round — up to 1.25 m wide and 6 m long, bearing bars from 20×3 mm to 100×8 mm on 30 / 40 / 60 mm centers, serrated or plain. One order can mix duties: heavy bays over the staging area, lighter bays at the rail.
3 · Close the edges
Every open side of a working platform gets a toe plate, and every panel gets fixed down. Toe plates and clips are sourced companion items we quote alongside the panels as their own line items — matched to the spec, supplied on the same shipment, with the fixing layout in the order documents.
Why specify a platform deck
Safe, Load-Rated, Made to Size
Load-rated for a floor people stand on
One-piece panels spread foot, tool and cart loads across the full bay instead of point-loading a sheet. Specify by span and duty class, not by guesswork — load and span tables come with your quote, and test data is available per batch on request.
Anti-slip by geometry, serrated or plain
Serrated bearing bars put a tooth profile under the boot; plain bars give a smooth deck for covered dry interiors. Either way the open mesh sheds water, ice, oil and debris straight through the floor — the working surface stays visible and drains itself.
Made to size, galvanized or stainless
Bays cut and banded to your beam grid, with an MTC EN 10204 3.1 for every heat and free drawing review inside the 24-hour quote. Hot-dip galvanized to ASTM A123 / ISO 1461 as standard, or SS304 / SS316 where the environment demands it.
Metal options
Metal Grating Platform Options: Steel Grid Deck to Stainless
A metal grating platform is specified by two decisions — the deck construction and the metal in it. Every option below comes off our own lines or our stainless line, in the same specification envelope: bearing bars 20×3 to 100×8 mm, spacing 30 / 40 / 60 mm, panels up to 1.25 m wide and 6 m long.
Welded steel grid deck
The default bar grating platform: electro-forged bearing and cross bars fused at every intersection. The joint cannot work loose under repeated traffic, which is why it carries working platforms and mezzanine floors.
Welded steel grating →Press-locked close mesh
Cross bars mechanically pressed into notched bearing bars — no weld heat, no distortion, mesh down to 11 / 11 mm. The fine floor for platforms where small parts or tools must not fall through.
Press-locked grating →Stainless platform grating
SS304 for food and chemical washdown, SS316 for chloride exposure — same bar ranges and spacings as the carbon steel lines, supplied with the same MTC EN 10204 3.1 documentation.
Stainless steel grating →Heavy-duty platform deck
Taller bearing bars on closer centers where pallet trucks and wheeled loads cross the platform. Specify it bay by bay — only the loaded bays need the heavy spec.
Heavy-duty grating →Applications
Where Steel Platform Grating Works
Anywhere a floor has to carry people, drain itself and let light and ventilation through — that is platform grating territory.
Plant access & inspection platforms
Light decks around tanks, silos and ducting for rounds and gauge reads.

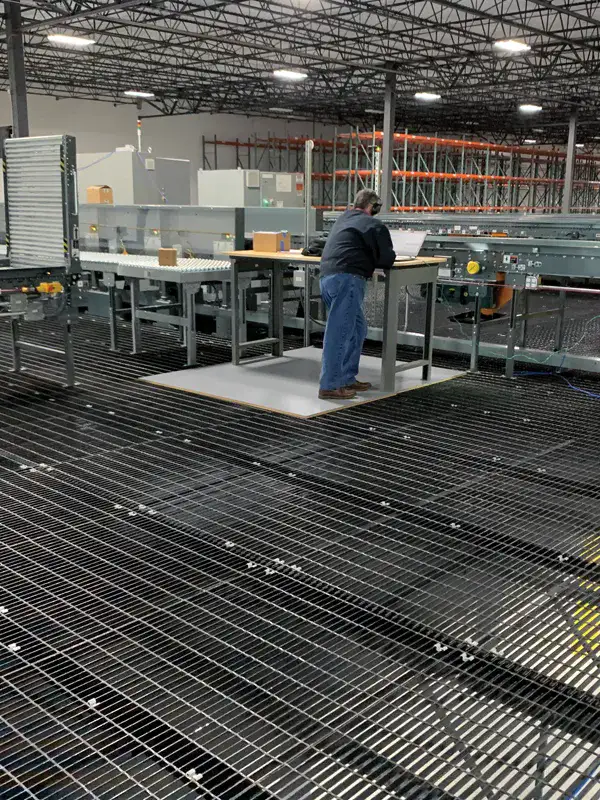

Mezzanine floors
Storage and packing levels above the plant floor — bays cut to the beam grid.
Pipe-rack & maintenance platforms
Working levels over process lines, valve stands and conveyor galleries.
Offshore & marine platforms
Salt-exposed decks in SS316 or hot-dip galvanized steel — see the marine section.
Marine exposure
Offshore Platform Grating in Marine Exposure
Offshore platform grating lives in salt spray, washdown and condensation — an environment that picks the metal for you. Hot-dip galvanized carbon steel holds up in drier topside and sheltered areas; where spray, deluge and chloride are constant, the honest answer is SS316, and it is the answer we quote.
Our stainless line runs the same specification envelope as the carbon steel lines — bearing bars from 20×3 mm to 100×8 mm on 30 / 40 / 60 mm centers — so a platform drawing can mix galvanized bays and SS316 bays without changing geometry. Every heat arrives with its mill test certificate verified at goods-in, and panels leave with documentation.
We produce to the standard your project names and supply reports on request — we do not claim offshore class approvals we do not hold. See 316 stainless options → · Offshore grating page →
| Exposure zone | Deck we quote |
|---|---|
| Sheltered interior levels | Hot-dip galvanized Q235B, serrated surface |
| Exposed topside decks | HDG with coating thickness checked by sampling per batch |
| Splash, deluge & washdown zones | SS316 stainless, plain or serrated |
| Food & chemical washdown (onshore) | SS304 stainless |
| Documentation | MTC EN 10204 3.1 per heat, inspection report with every shipment |
Specifications
Platform Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers |
| Cross bar | Twisted square or round, per specification |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Edges | Banded all round; close-mesh inserts where parts drop |
| Companion items | Toe plates, clips and support frames — sourced, quoted as line items |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Load tables & calculators → · Walkway grating specifications →
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Platform panels produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Platform Panels Cut and Banded to Your Beam Grid
Send your platform layout
Beam grid, bay sizes, duty per area, quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized per bay — panels, banding, toe plates and clips as separate line items. FOB Tianjin as standard, EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order — bolted assembly, no site welding.
Factory-direct quote
Get a Platform Quote
Ask for a steel grating platform quote today — send the beam grid, bay sizes and duties, and an itemized quote lands within 24 hours with free drawing review included.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What is the lead time for a steel grating platform order?
Samples ship in 5–7 working days and mass production runs 15–25 working days after drawing confirmation, both including hot-dip galvanizing. Rush production in 10–15 days is possible with a surcharge — ask in your quote.
Do you make the toe plates and clips as well?
No — toe plates, fixing clips and support frames are sourced companion items we supply alongside our panels, matched to the panel specification and quoted as their own line items. What we make in-house are the grating panels themselves: welded, press-locked and stainless lines under one roof.
How is platform grating shipped and priced?
Shipped worldwide from Tianjin Port — FOB Tianjin as standard, EXW or CIF negotiable. Pricing is itemized per m² or per ton in your quote; we do not publish a fixed price list.
