Edge construction
Open Ends vs Banded Edges vs Banded with Toe Plate
The same panel can leave the mill three ways. What changes is what happens at the edge — how loads enter the panel, how it is lifted, and how it finishes against a fall or a road. Here is the honest trade-off.
| Dimension | Open Ends | Banded Edges | Banded + Toe Plate |
|---|---|---|---|
| Edge construction | Bearing bar ends left open, closed only by the last cross bar | Flat band bar welded across the end of every bearing bar | Banded edge plus an upstand toe plate along the open side |
| Load at the edge | Not for walking across or lifting by the edge | Band carries transverse loads and keeps the panel square | Band carries the load; toe plate contains heels and tools |
| Handling | Support the full panel width; forks under cross bars only | Sling, fork or hinge at the banded edge | Same as banded, with edge protection in traffic zones |
| Typical use | Panels fully seated in a channel or frame on all sides | Exposed walkway edges, removable covers, tread ends | Platform edges beside open sides, pits and road kerbs |
| Finish behavior | Cut ends rely on the coating of the bar itself | Band welds sealed inside the hot-dip galvanized coating | Toe plate finished with the panel as companion framing |
| Our capability | Cut to size in-house | Standard — banded on our weld and press lines | Toe plates quoted as sourced companion items |
Not sure which edge your installation needs? Send your drawings — we will spec it inside the 24-hour quote.
Terminology note: dense panels with closed edges are sometimes searched for as honeycomb grating. In trade language that almost always means close-mesh press-locked panels finished with banded edges — describe the mesh and the banding in your RFQ and we will quote exactly that.
Banding anatomy
What Banding Is — And the Ways We Close an Edge
1 · The band bar

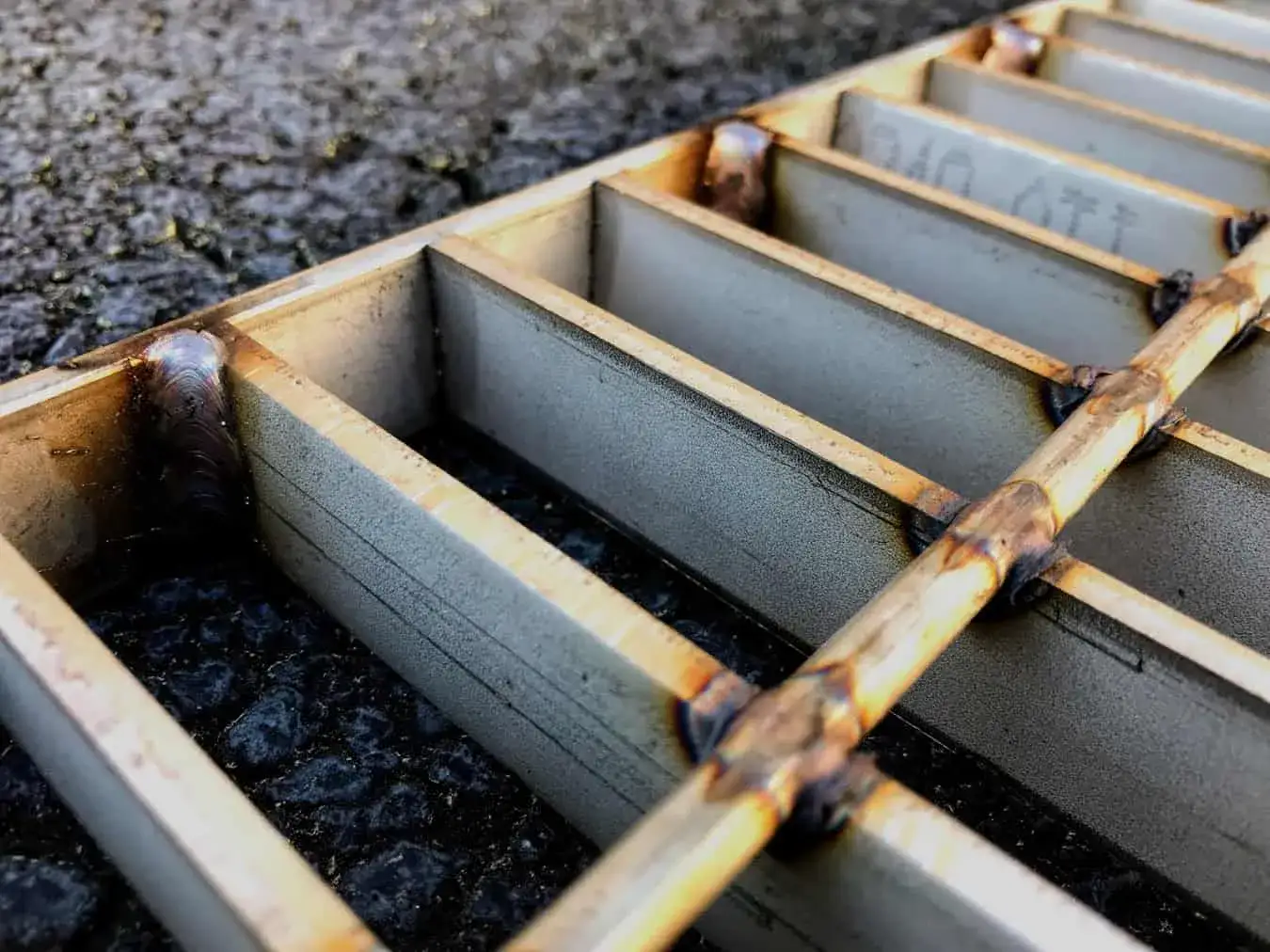

A band is a flat steel bar welded across the ends of the bearing bars, closing the panel edge. Every bar end ties into one stiff member, so the edge stops being a row of cantilevered teeth and becomes a load-bearing frame side.
2 · Trim band
The everyday banded grating: trim bands of the same height as the bearing bars, flush with the walking surface. The edge feels smooth underfoot, hoses do not snag on bar ends, and the panel nests square for packing.
3 · Toe plate companion framing
Where an edge borders a fall or a road, an upstand toe plate runs along the banded edge. We supply toe plates as sourced companion items alongside our panels — specified to match the band height and finished with the same coating.
When to specify banding
When Panels Must Be Banded
Open ends are a legitimate, economical choice — but only when the edge never carries anything. These are the four situations where a banded edge is the correct engineering call, not an upgrade.
Exposed walking edges
Where people walk up to or along the panel edge — platform perimeters, walkway ends, aisle edges — the band carries their load into the panel.
Hinged & removable covers
A cover lifted by one edge hangs from its band. Lifting lugs and hinge points land on the band bar, never on open bar ends.
Stair tread ends
Treads land on carrier angles at their ends, so tread ends are closed with end plates or bands — formed in-house as part of tread fabrication.
Crane & forklift handling
Slings and forks pinch the edge. Banding keeps the panel square through loading, container packing and years of removal for cleaning.
The exception is equally clear: a panel that sits fully seated in a channel or rebate on all four sides, with no traffic on the edge, can ship with open ends and perform exactly as designed. We will say so in the quote when it is the right call.
Why specify banded
Why Buyers Specify Banded Grating from Our Mill
In-house made, factory-direct
Banding happens on our own weld and press lines, before hot-dip galvanizing — the edge you specify is the edge that ships, with no third-party fabrication in between.
Flat-top and high-load bands
Bands flush with the walking surface for smooth edges, or heavier sections for high-load panels and hinged covers — matched to the bearing bar height you specify.
Custom sizes, small MOQ
Cut and banded to your drawings with free drawing review — and small trial orders are welcome, so you can prove the edge construction before the full container.
Applications
Where Banded Edges Earn Their Keep
Banding matters wherever the edge of the panel meets people, wheels or a lifting hook — these are the positions we quote most often.
Platform perimeters
Banded edges at every open side of mezzanines and maintenance platforms, with toe plates where the edge borders a fall.
Trench & pit covers
Covers that are lifted out for cleaning are banded at both lifting edges; fully seated flush covers can stay open-ended.
Access & hinged covers
Hinge halves and locking bars bolt to the band bar, so covers swing on a closed structural member rather than bar ends.
Stair treads & landings
Tread ends closed with end plates or bands, with nosing and carrier plates specified to suit the stringer detail.
Specifications
Banded Grating Specifications
| Parameter | Range |
|---|---|
| Band bar section | Flat bar, 20×3 mm to 100×8 mm — matched to the bearing bar |
| Band attachment | Welded to every bearing bar end; pressed joint on press-locked panels |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Tread banding | Formed in-house as part of stair tread fabrication |
| Toe plates / frames | Quoted as sourced companion framing |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Band welds inspected on the same five-stage QC plan as the panel joints, produced to MBG 531 reference practice.
ASTM A123 / ISO 1461 HDG
Banding is finished before galvanizing, so band welds are sealed inside the coating — thickness checked by sampling on every batch.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Cut and Banded to Your Drawings
Send your drawing
Panel sizes, edge positions, band sections, quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote in 24 Hours
Send panel sizes and edge positions — banded grating samples in 5–7 working days, with free drawing review included in the quote.
- Banding on our own weld and press lines — standard, not an extra
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What does banded grating mean?
A banded panel has a flat band bar welded across the ends of every bearing bar, closing the edge of the panel. The band gives the edge a smooth, load-bearing finish instead of open bar ends — the standard construction wherever an edge is walked on, lifted or exposed.
When must grating panels be banded?
Specify banded edges whenever the panel edge sees load or handling: exposed walkway and platform edges, hinged or removable covers lifted by one edge, stair tread ends, and any panel moved by crane or forklift. Open ends are acceptable when panels sit fully seated in a channel or frame on all sides.
What is the lead time for banded grating?
Samples ship in 5–7 working days and mass production runs 15–25 working days after drawing confirmation, both including hot-dip galvanizing. A factory quote with the banding spec included lands within 24 hours.
