The method · inputs
Four Inputs Decide Every Bar Grating Load Check
This page is a calculator the honest way: it shows you the full method engineers use, then runs the actual numbers for your spans and loads — free, with your quote. There is no fake instant-output widget here, because a real answer depends on inputs only you have.
Span & support direction
The clear span is the unsupported distance along the bearing bars — the direction load travels to the supports. Panels here run up to 1.25 m wide and 6 m long, so orientation decides which dimension becomes the span.

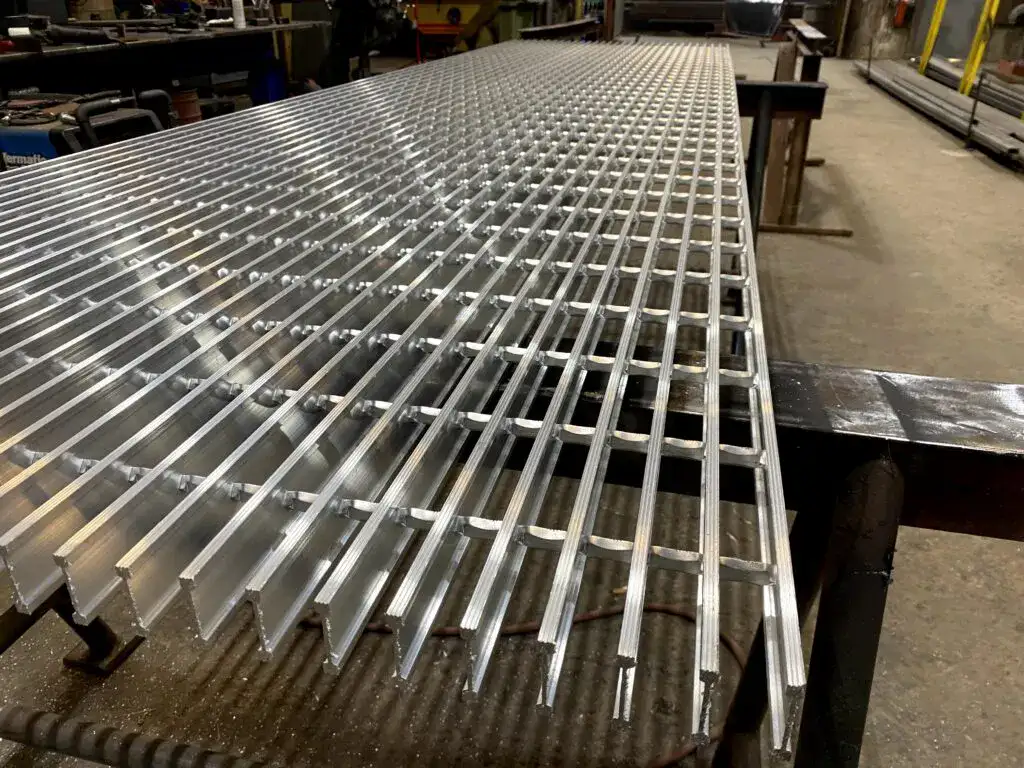

Bearing bar section
Bar depth × thickness, from 20×3 mm to 100×8 mm in our range. Depth is the strongest lever in the whole calculation — see the logic section below, and the bearing bar options we build.
Bar spacing
30 / 40 / 60 mm centers on welded panels; press-locked close mesh reaches 11 / 11 mm. Spacing sets how much load each bar collects — and how open the floor is underfoot.
Load type
A uniformly distributed load spread over the area, a concentrated point load on one spot, or both at once. The same panel can pass one case and fail the other — so both get checked.
The method · logic
How the Numbers Move: Strip, Section, Sag
A bar grating span calculator is the same logic run the other way around: hold the load fixed and ask how far a given bar section will carry it. The three steps below drive both directions.
1 · Load divides into strips
A uniform load over the panel is split into parallel strips, one per bearing bar, each one spacing wide. Wider spacing means one bar collects more of the floor — which is why heavy duty often means closer centers as well as deeper bars.
2 · Bar section sets capacity
Each strip acts as a small simply supported beam, and its bending resistance comes from the rectangular bar's section modulus. Standard beam theory puts that resistance growing with the square of bar depth — thickness only in proportion — so engineers deepen bars before anything else.
3 · Deflection usually governs
Under uniform load, sag grows with the fourth power of span — double the span and the same bar sags many times more. Most selections are settled by the deflection limit your project sets, not by ultimate strength, so the check ends on the sag criterion.
Want the real numbers for your floor rather than the theory? Send your spans and loads — we run the numbers and return the calc with your quote.
Load cases compared
Uniform Load vs Point Load — What Each Does to a Panel
Two load cases, two different behaviors inside the same panel. Any proper grating load calculation — or the bar grating span table built from it — checks both.
| Dimension | Uniformly distributed load (UDL) | Concentrated (point) load |
|---|---|---|
| What it is | Pressure spread across the whole floor area — people, stored goods, snow | One heavy footprint, pallet foot or wheel on a small contact patch |
| Path through the panel | Shared between many bearing bars at once, strip by strip | One or two bars take it first; cross bars help spread it to neighbors |
| What it stresses | Bending along the full span of every strip | Local bending under the contact patch, plus the same span bending |
| Typical drivers | Walkways, storage platforms, plant flooring | Forklifts, trolley wheels, machine feet, pallet stacks |
| How we check it | Per-bar strip demand against bar capacity, then deflection over the span | Load placed in the worst allowed position, bar-to-bar distribution, then deflection |
Wheel loads driving your spec? See heavy-duty grating construction — thicker bars, closer centers — or send the wheel data and we will pick the section.
Worked concept example
One Panel, Walked Through in Symbols
We will not fabricate a calculator output — an honest number needs your supports and your governing code. What we can show is the method applied to the symbols and the ranges this mill actually builds to:
| Symbol | Meaning | Our real range |
|---|---|---|
| h | Bearing bar depth | 20 mm to 100 mm |
| b | Bearing bar thickness | 3 mm to 8 mm |
| s | Bar spacing, on centers | 30 / 40 / 60 mm; close mesh to 11 / 11 mm |
| L | Clear span along bearing bars | Set by your supports; panels up to 1.25 m × 6 m |
| w | Uniform load on the floor | Your project value, kN/m² |
| P | Point or wheel load | Your project value, kN |
Strip: spacing sizes the demand
One bar carries the strip of floor one spacing s wide, so demand per bar moves in step with s — halve the spacing and you halve what each bar must carry.
Section: depth is the first lever
Standard beam theory gives a rectangular bar bending resistance that grows with the square of h and only linearly with b — which is why a failed check is usually answered with a deeper bar, not a thicker one.
Sag: span is the unforgiving one
Under uniform load, deflection grows with the fourth power of L, so the same bar sags many times more at twice the span. The deflection limit your code sets usually picks the section before strength does.
That is the whole method — and its honest limit
Strip, section, sag. What it deliberately never does is invent a result for your floor: real checks need your support conditions, your load positions and your governing code. Send h, s, L, w and P — or just drawings and photos — and the factory engineers run the actual numbers, returning the calculation sheet with your itemized quote within 24 hours.
Why ask this factory
Why Engineers Ask This Mill for Bar Grating Load Answers
Engineers answer, not an auto-guesser
Ask the mill that cuts the bars. Your spans and loads go to factory engineers who check the panel they will actually build — the method above, applied to your case, free.
The load method, made simple
Four inputs and three checks — strip, section, sag. This page hands you the whole logic, so you can sanity-check anything we send back.
