A Grating Load Calculator That Follows the Format You Actually Have
A grating load calculation is format-agnostic in its physics but format-specific in its details: the same strip of floor behaves differently in a welded panel, a press-locked close mesh and a stainless floor. Whichever you have, this page covers it — and the engineers run the numbers on the exact format you plan to buy.
| Dimension | Welded bar grating | Press-locked, incl. close mesh | Stainless grating |
|---|---|---|---|
| How it is formed | Bearing and cross bars resistance-forged at every intersection | Cross bars pressed into notched bearing bars, no welding heat | Same welded or press-locked geometry in SS304 / SS316 |
| Mesh range | 30 / 40 / 60 mm centers | Down to 11 / 11 mm close mesh | Same mesh range as the carbon-steel formats |
| Where load travels | Along the bearing bars to the supports, strip by strip | Both bar directions share load through the interlocked joints | Along the bearing bars; section re-checked for the alloy |
| What the check emphasizes | Per-bar strip demand and deflection over the span | Finer strips, more bars sharing — pedestrian and heel cases | Material strength differences, so the same section is re-rated |
| Typical duty | Platforms, walkways, trench covers | Municipal trench, tree pits, fine flooring | Food, chemical and washdown floors |
| Our supply | In-house — electro-forging line | In-house — press-lock machine | Same lines, stainless feedstock |
Not sure which format your duty needs? Send your spans and loads — engineers reply in 24 hours with the format and the calculation.
The method
The Grating Load Calculator Method: Strip, Capacity, Deflection
There is no honest instant-output widget on this page, because a real result depends on inputs only you have. What we can give you is the full method — the same three steps a steel grating load calculator runs, whatever the format:
1 · Per-bar strip loading
Whatever the format, the floor is cut into parallel strips one bar spacing wide, and each strip loads one bar as a small simply supported beam. Close mesh means many thin strips; open welded mesh means fewer, heavier ones — the format changes the strip, never the logic.
2 · Capacity concept
Each strip's bending resistance comes from the rectangular bar's section modulus — proportional to b·h²/6 in standard beam theory. Depth counts squared, thickness only once, which is why a failed check is answered with a deeper bar long before a thicker one.
3 · Deflection check
Under uniform load the sag grows with the fourth power of span, so the deflection limit your project or code sets usually governs before strength does. The check closes on that criterion — and it is the reason span tables, not strength tables, drive most selections.
That is the whole logic — and its honest limit: no invented numbers. Send your spans and loads — engineers reply in 24 hours with the verified calculation and your quote.
What we need from you
What a Grating Load Capacity Calculator Needs From You
Fill in these seven lines — in an email, a sketch or the form below — and the engineers have everything required to run the check on a panel we can actually build. Missing lines are fine too; we will ask, or work from your photos.
The seven inputs
- 1 · Grating format — welded, press-locked, close mesh, tread, stainless; or just describe the job
- 2 · Clear span and bearing direction — the unsupported distance load travels to the supports
- 3 · Bar section and spacing, if known — our range runs 20×3 mm to 100×8 mm bars, 30 / 40 / 60 mm or close mesh 11 / 11 mm
- 4 · The loads — uniform load in kN/m², point or wheel loads in kN, or a plain-duty description
- 5 · Material and finish — Q235B, SS304 or SS316; black or hot-dip galvanized
- 6 · Deflection limit or code — if your project answers to one, we check against it
- 7 · Area or panel count — total m² or panels, and the delivery destination
What comes back, free
- The verified load calculation for your exact spans, loads and format
- The matching load and span tables — provided with your quote, not as generic guesses
- An itemized quote within 24 hours, FOB Tianjin as standard
Why no instant widget
An honest answer depends on your supports, your load positions and the code you answer to. A form that pretends otherwise would hand you a number you cannot file. So the method lives on this page, and the arithmetic happens at the mill — free, by email, inside the 24-hour quote.
Why ask this factory
Why Engineers Use This Steel Grating Load Calculator Route
A load calculator by engineers
Your spans and loads land with the people who cut the bars, on the panel they will actually build — not with a script that has never seen your support conditions.
Free load calculator help, by email
The check costs nothing and obliges you to nothing. Send the seven inputs — or a photo of the existing floor you are replacing — and the calculation comes back by email with your quote.
Verified, and it returns with your quote
Every calculation is checked against recognized practice on the real format — welded, press-locked, close mesh or stainless — and the calculation sheet travels with an itemized quote inside 24 hours.
Specifications
The Formats and Ranges the Calculation Lands On
| Parameter | Range |
|---|---|

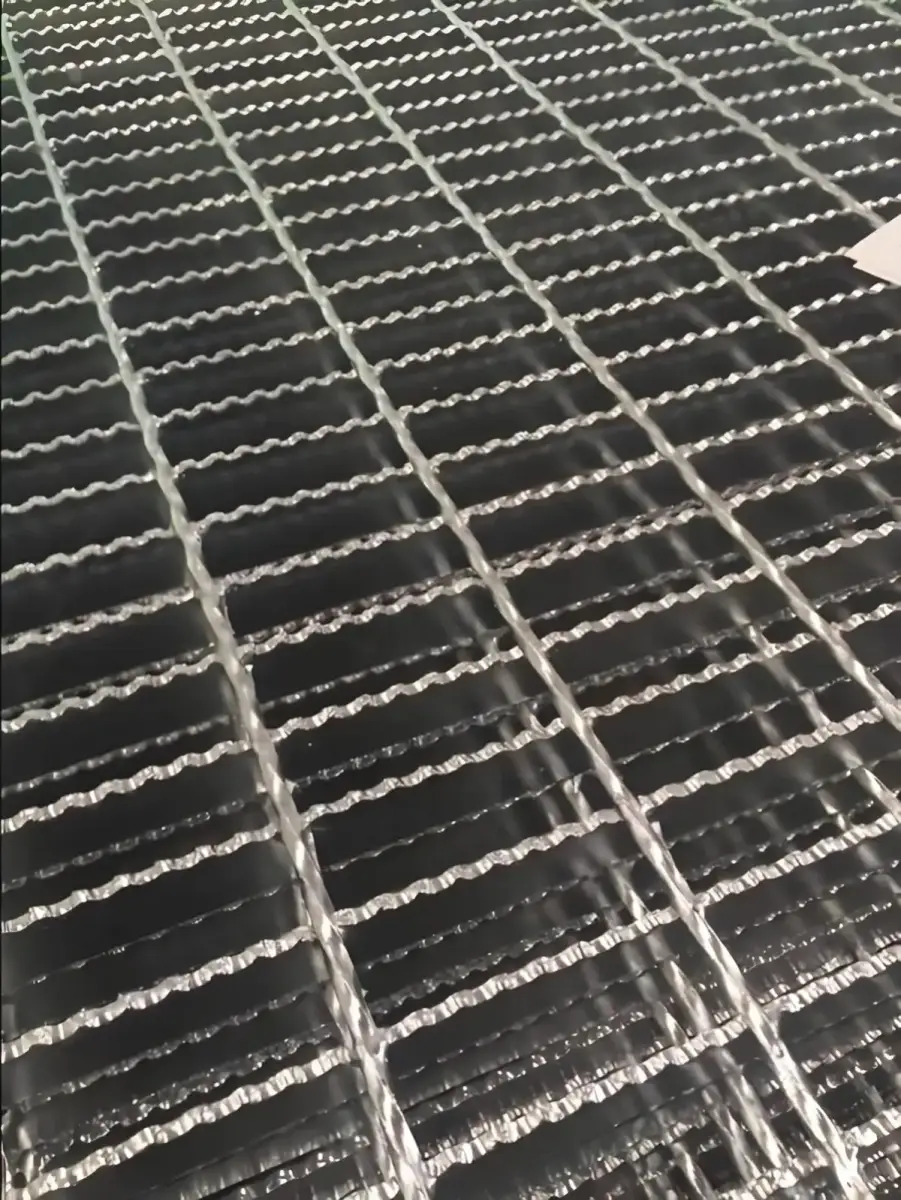

| Welded bar grating | Bearing bars 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers |
| Press-locked mesh | Interlocked flat bars, down to 11 / 11 mm close mesh |
| Stair treads | Cut to tread drawings, serrated or plain |
| Panel size | Up to 1.25 m wide and 6 m long |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Stock designation | 19W4 and custom equivalents |
Load tables, documents and how they reach you
Full load and span tables are provided with your quote — the right table depends on your format, span and load case, so we do not publish generic ones. The documents travel with the steel:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Load Checks Run Against Recognized Practice — Documents on Request
ANSI / NAAMM MBG 531
Load calculations referenced to MBG 531 practice, on any format and designation you specify — 19W4 or a custom equivalent.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Ask the factory
Send Your Spans and Loads — Verified Calculations Return With Your Quote
Send the seven inputs
Format, span and bearing direction, bar section if known, loads, material, any code limit, area. A sketch or drawing is perfect — review is free.
Engineers run the check
Per-bar strip demand, capacity concept and deflection check, applied to the exact format and material you plan to buy.
Calculation and quote within 24 hours
The verified calculation sheet, matching tables and an itemized quote — FOB Tianjin as standard, EXW or CIF negotiable. Samples in 5–7 working days, production in 15–25.
Free load calculation
Request a Grating Load Calculation
This form is the calculator request: list your spans and loads in the details field — any grating format — and factory engineers run the numbers and return the verified calculation with your itemized quote within 24 hours.
- Free, by email — no obligation, any grating format
- Matching load and span tables provided with your quote
- DoC, MTC EN 10204 3.1 and inspection report with every order
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Send spans and loads
Five fields — we run the numbers.
FAQ
Frequently Asked Questions
Is there an online grating load calculator I can use?
Not a click-and-guess widget — and that is deliberate. A grating load calculation only means something once your span, supports, load positions and governing code are known, so we show you the method instead and run the real numbers. Send your spans and loads and factory engineers reply with the verified calculation within 24 hours, free by email.
Which grating formats can you calculate loads for?
Every format this mill builds. Welded bar grating with 20×3 mm to 100×8 mm bars at 30 / 40 / 60 mm centers, press-locked panels including close mesh down to 11 / 11 mm, heavy-duty sections for wheel loads, stainless grating in SS304 and SS316, and stair treads with their concentrated foot-load case.
What do you need from me, and what comes back?
Seven inputs: the grating format or process, the clear span and bearing direction, bar section and spacing if known, the uniform and point loads, material with finish, any deflection limit or code you answer to, and the area or panel count. Back comes the verified calculation sheet, the matching load and span tables, and an itemized FOB Tianjin quote — all within 24 hours.
