Factory-direct steel gratings & stair treads, shipped worldwide
Bar Grating
Bargrate made to order. Welded or press-locked, HDG finish.
Itemized quote in 24 hours · Send a sketch — we'll spec it
Quote in 24 hours
Free drawing review included
Samples in 5–7 days
Production in 15–25 working days
Certified & tested
Reports on request, MTC with every order
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Pick by job
Which Bar Grating Do You Need?
People type this product a dozen ways — bargrate, bar grading — whatever spelling you use, this is the panel: parallel bearing bars locked with cross bars into an open steel mat. You do not need the jargon to order it. Start from the job below, and we handle bar sizes, centers and finish in the quote.
| The job | Bearing bars | Bar centers | Surface | Read more |
|---|---|---|---|---|
| Walkways & catwalks, foot traffic | Plain bars, from 20×3 mm | 30 mm | Serrated optional for wet floors | Floor Grating |
| Platforms & mezzanines | Heavier bars, up to 100×8 mm | 40 / 60 mm | HDG for outdoor duty | Grated Floor Panel |
| Trench & drain covers | Plain bars, from 20×3 mm | 30 / 40 mm | HDG, small openings | Grating Mesh |
| Public floors, heel-proof | Press-locked bars | Close mesh 11 / 11 mm | HDG or stainless | Metal Mesh Grating |
| Wheel traffic & ramps | Up to 100×8 mm, serrated | 40 / 60 mm | HDG, anti-slip | Heavy-Duty Grating |
Row not on the list? Send a sketch — we'll spec it inside the 24-hour quote, load check included.
How to order
From Sketch to Container in Three Moves
1 · Send what you have
A drawing, a marked-up photo of the old panels, or just dimensions typed into a message. Rough is fine — drawing review is free and part of every quote.
2 · We spec it, quote in 24 hours
Back comes a spec: bar size, centers, finish, banding, fixing layout — itemized, FOB Tianjin as standard. Small trial orders are welcome, so you can test before you scale.
3 · Samples, production, documents
Samples in 5–7 working days, production 15–25 after drawing confirmation — HDG included. Five-stage QC, then MTC and inspection report travel with the goods.
Why buy this way
Why Buyers Order Bar Grating Factory-Direct
Factory-direct FOB pricing
You buy from the mill in Shijiazhuang, not a trading desk. Every order is quoted factory-direct FOB Tianjin and itemized — per m² or per ton, no hidden layers.
Custom sizes from a small MOQ
Stock designations like 19W4, or panels cut and banded to your drawings. Custom bar grating starts from small MOQ — order the quantity the job needs, not a container more.
Anti-slip and heavy-duty options
Serrated bearing bars for wet or oily floors, plain bars for dry interiors, bars up to 100×8 mm for wheel loads. Stainless SS304 / SS316 when the environment eats carbon steel.
Applications
Where Bar Grating Ends Up
Open mesh lets water, light and air through while the steel carries the load. Four jobs cover most bar grating orders we quote.
Plant platforms
Load-rated flooring around machines and on mezzanines.
Walkways & catwalks
Drains rain and spills underfoot, so the walking line stays clear.

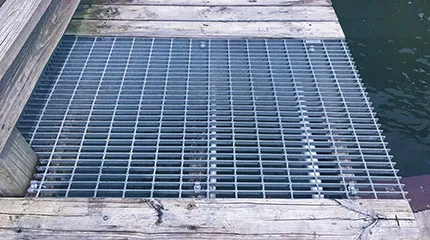

Trench & drain covers
Covers that let process water through and keep the surface safe.
Stair treads
Bar grating treads with serrated or plain surface and nosing.
Specifications
Bar Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar centers | 30 / 40 / 60 mm |
| Cross bars | Twisted square or round, per specification |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Construction | Welded or press-locked |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Stock designation | 19W4 and custom equivalents |
Materials & test documents
You do not have to take our word for the steel. Every heat of Q235B, SS304 or SS316 is checked against its mill test certificate at goods-in, and the paperwork follows the panels:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Bar grating produced to MBG 531 reference practice, with joint inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Hot-dip galvanized coating thickness checked by sampling on every galvanized batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — you get documents you can verify, not a certificate wall.
No drawing? No problem
Send a Sketch — We'll Spec It
Send what you have
Photos of the old panels, a napkin sketch, or a few dimensions — plus quantity and destination port. That is enough to start.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. We propose the bar size and centers so you do not have to guess.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Get a factory quote in 24 hours — custom bar grating from small MOQ. Five fields, we do the rest.
- Free drawing review — a sketch is enough to start
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
How fast can I get a bar grating quote?
Within 24 hours, free drawing review included. Send panel sizes, bar centers and quantities — or a photo of the opening — and we reply with an itemized quote. Samples follow in 5–7 working days.
Do you accept small or trial orders?
Yes — small trial orders are welcome. Full-container orders are calculated per loading plan, so you only pay for the steel you ship.
How is bar grating shipped and priced?
Shipped worldwide from Tianjin Port, roughly 400 km from our mill — FOB Tianjin as standard, EXW or CIF negotiable. Pricing is itemized per m² or per ton in your quote; we do not publish a fixed price list.
