Twisted Bar Grating
Twisted bar grating for grip and airflow, welded to span.
Itemized quote within 24 hours · Cross-bar and pitch chart attached on request
Twisted square or round cross bars
Between plain bearing bars, 20×3 to 100×8 mm
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Factory-direct worldwide, EXW / CIF negotiable
The cross-bar page
Twisted Bar Names the Cross Bar — Here Is the Joint
A twisted bar grating panel is ordinary welded grating seen from the cross-bar side: plain bearing bars that span the load, and cold-twisted square cross bars forged across them. Drawings often abbreviate the construction to t bar grating — the "t" naming the twisted cross bar — while the load still runs along the bearing bars; the twist decides what the panel feels and looks like underfoot.
Panel schematic, top view — cross bars sit on the bearing bars and are resistance-forged at every crossing.
Joint detail — the rotating square profile gives each weld edge contact and puts a wearing edge on the walking surface.
What the word names
In trade speech, twisted bar is the cross bar of welded grating — a square bar cold-twisted along its length. Buyers sometimes say twisted bar grating meaning the whole panel; we map that to a standard welded panel with twisted square cross bars and quote it either way.
Why the bar is twisted
The twist presents four longitudinal edges instead of a flat face: the weld fuses onto edge contact at every joint, and the surface underfoot shows a slim ridge pattern — grip as geometry, plus the sparse, open look welded grating is specified for. No slip rating is claimed; geometry only.
The round alternative
Round cross bars run on the same welded lines and are quoted per specification. They feel smoother underfoot and suit lighter panels and screening; twisted square remains the standard build for platform and walkway duty. Either way, one drawing covers both.
Cross-bar comparison
Twisted Square vs Round vs Pressed Flat
The bearing bars decide the load; the cross-bar section decides the surface, the look and how the joint is made. Three builds, one factory.
| Dimension | Twisted Square | Round | Pressed Flat |
|---|---|---|---|
| Joint principle | Cold-twisted square bar resistance-forged at every bearing-bar intersection | Round bar resistance-forged at every intersection — the classic light-panel build | Flat bars mechanically pressed into notched bearing bars — no welding |
| Surface presented | A wearing edge rather than a flat face — grip as geometry, no rating claimed | Smooth crown, comfortable under steady foot traffic | Full flat strip — easiest on shoes, least open area |
| Open-mesh look | Edges read slim from above: the sparse, high-airflow welded look | Very open visually; favorite for screens and shading | Denser appearance; fine close mesh down to 11 / 11 mm |
| Transverse role | Locks bearing bars in line and spreads wheel loads across the panel | Locks bearing bars with lighter transverse stiffness | Strong transverse stiffness from full bar-to-bar contact |
| Typical duty | Platforms, walkways, treads — the standard welded-grating cross bar | Light walkways, fencing, sun-shading and ventilation panels | Trench covers, tree pits, facades, fine floors |
| Our supply | Standard on our welded panels — pitch set with you in the quote | Quoted per specification on the same in-house lines | In-house press-lock machine, close-mesh capable |
Drawing calls out a section we have not listed? Send your drawings — we will spec it inside the 24-hour quote.
The two spacings are independent — specify both and the panel is fully defined.
Cross-bar pitch
Pitch Frames the Panel — Spacing Carries the Load
Cross-bar pitch is the distance between cross bars, measured across the bearing bars. It sets transverse stiffness, how evenly a wheel load spreads across neighboring bearing bars, and how open the panel reads — it does not set load capacity. That belongs to the bearing bar: its height, thickness and the spacing between bearing bars.
Designations say the same thing in numbers. In a W19-4 style designation, 19 is the bearing-bar spacing in sixteenths of an inch (19/16 in) and 4 is the cross-bar pitch in inches (4 in ≈ 100 mm). Read the second number as the cross-bar story — that is the number this page is about. Our welded range runs bearing bars at 30 / 40 / 60 mm centers with the cross-bar pitch matched to bar height and traffic in the quote.
19W4 designations explained → · Choosing the bearing bar →
Pitch-by-section charts are provided with your quote rather than published as fixed tables, because the right pitch depends on bar height, traffic and span basis.
Why specify twisted
Why Engineers Specify Twisted Bar Grating
Specs and charts, not guesswork
Twisted bar grating quoted from the drawing: bar height, spacing, cross-bar section and pitch stated line by line. The pitch and section chart travels with your quote — ask for it in the message field.
Custom twisted bar grating, mill made
Any panel size up to 1.25 m × 6 m, cut and banded to your drawings, twisted square or round cross bars — samples in 5–7 working days so you check the mesh on site before the main run.
A123 HDG as standard
Black or hot-dip galvanized to ASTM A123 / ISO 1461 referenced practice, with coating thickness checked by sampling on every galvanized batch — the twist edges included, before panels are released.
Applications
Where Twisted Cross Bars Earn Their Keep
Edge grip and open airflow — the two properties the twisted cross bar brings to a welded panel — matter most in these positions.
Plant platforms & mezzanines
Open mesh lets spills and dust fall through; the cross-bar ridges give steady footing on inspection routes.

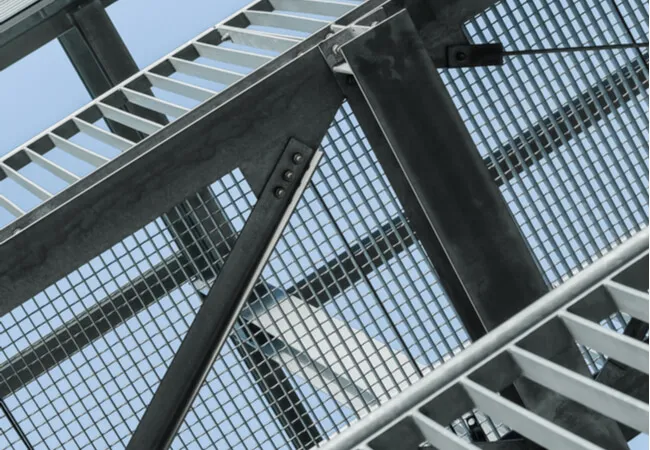

Outdoor walkways & catwalks
Airflow dries rain fast and the sparse twisted mesh stays visible underfoot in low light.

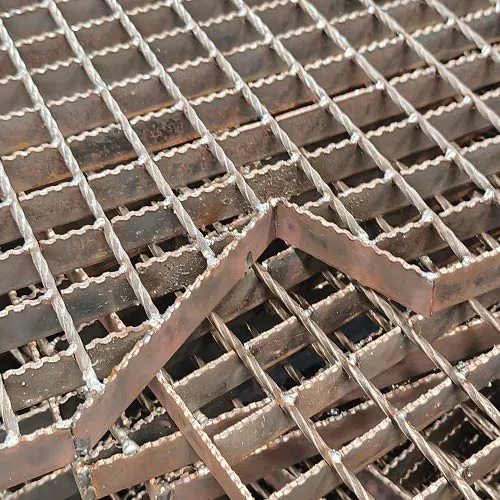

Stair treads
Welded treads with twisted cross bars and a nosing bar — serrated bearing bars available where more grip is wanted.
Trench & drainage covers
Cross bars span the trench width while bearing bars carry the traffic — open mesh keeps water moving.
Specifications
Twisted Bar Grating Specifications
| Parameter | Range |
|---|---|
| Cross bar | Twisted square (standard) or round, per specification |
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bearing bar spacing | 30 / 40 / 60 mm centers |
| Cross-bar pitch | Matched to bar height and traffic; stated in the quote |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Stock designation | 19W4 and custom equivalents |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Twisted lots are checked joint by joint on the same plan. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Welded twisted-bar panels produced to MBG 531 reference practice, with cross-bar welds on the five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch — twist edges and all — before release.
CE & SGS tested
Certified & tested, reports on request — twisted lots checked on the same plan. Documents you can verify, not a certificate wall.
Custom made
Custom Twisted Bar Grating, Cut and Banded to Your Drawings
Send your drawing
Panel sizes, bearing bar and cross-bar callouts, quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Any quantity, from small trial orders up; cross-bar chart attached on request.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Request twisted bar grating charts — reply within 24 hours. Send panel sizes, cross-bar callouts and quantities; the itemized quote follows, free drawing review included.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What does twisted bar mean in grating?
Twisted bar names the cross bar. A twisted bar grating panel is welded grating built from plain bearing bars that carry the load and cold-twisted square cross bars forged across them at every intersection. Buyers sometimes say twisted bar for the whole panel — that is the reading we quote against.
Can I get round cross bars instead of twisted square?
Yes — round cross bars are the standard alternative on welded panels and are quoted per specification. Twisted square presents a wearing edge to traffic and reads slimmer from above; round runs smooth and suits lighter panels. State the preference in the details field and it enters the same 24-hour itemized quote.
What is the lead time for twisted bar grating?
Samples ship in 5–7 working days and mass production runs 15–25 working days after drawing confirmation, both including hot-dip galvanizing. Rush production in 10–15 days is possible with a surcharge — ask in your quote.
