Safety Grating
Serrated surfaces bite into wet or oily soles, so crews keep footing on every step.
Itemized quote within 24 hours · Free drawing review included
In-house weld & press lines
Serrated and close-mesh safety panels under one roof
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
The band anchor
What Safety Means in a Grating Spec: Four Levers
"Safety grating" is not one product — it is a specification decision with four levers. Surface geometry, opening size, load class and edge detailing each control a different hazard, and every safety variant in our line is one of these levers turned up. Here is the framework, with the pages that go deeper on each one.
| Lever | What it controls | Options on our lines | Specify it when |
|---|---|---|---|
| 1 · Surface geometry | How a sole meets the steel in rain, oil or frost — how the top of the bearing bar is shaped | Serrated or plain tops on welded panels; plain tops on press-locked panels. Diamond-tread belongs to tread plate — in grating, serration is the gripping route (routes compared) | Wet floors, outdoor stairs, ramps, frost-prone walkways |
| 2 · Opening size | What passes through the panel — and whether heels, paws and small wheels stay on the surface | Welded 30 / 40 / 60 mm centers; press-locked close mesh to 11 / 11 mm (close-mesh options) | Pedestrian floors, public walkways, washdown areas |
| 3 · Load class | Whether the panel carries its traffic without excess deflection — the panel stays level underfoot | Bearing bars 20×3 to 100×8 mm; heavier sections and closer centers for wheel loads (heavy-duty construction) | Vehicle bays, kerbside zones, heavy plant floors |
| 4 · Edge detailing | Trip and edge hazards where panels end, meet a level change or start a flight of stairs | Banded edges, stair nosing, end plates; toe plates supplied as sourced companions to match the panels | Stair treads, platform borders, mezzanine edges |
Not sure which levers your site needs? Send your drawings — we will spec it inside the 24-hour quote.
How each lever works
Four Geometries Behind a Safer Panel

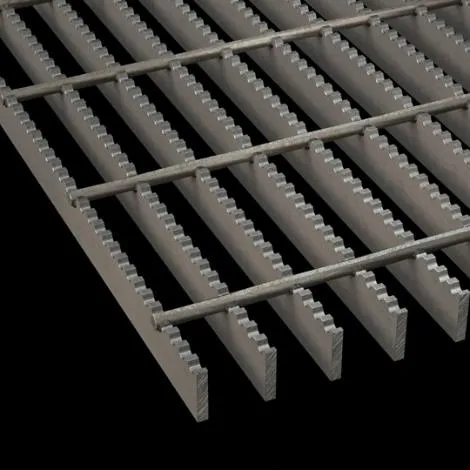

1 · The tooth
Teeth sheared into the bearing-bar top put many small edges under the sole, so the surface grips even when wet or oily. Plain tops stay smooth — chosen where traffic is light and floors stay dry.
2 · The opening
Bar spacing decides what happens at the surface: close mesh keeps heels and small wheels on top, open mesh moves more water and debris through. The zone picks the spacing.
3 · The span
Deeper bearing bars at closer centers carry the same traffic over longer spans, keeping the floor level underfoot. Load tables for your traffic case are provided with your quote.
4 · The edge
A band closes the open bar ends into one clean boundary; nosing marks the leading edge of every tread; toe plates stop items rolling off a platform edge — supplied as companions to match the panels.
Why specify safety grating here
Metal Safety Grating Panels, Built for Plants
Safety grating for plants
Metal safety grating panels from one factory: welded or press-locked, serrated or plain, set to the traffic of the zone. Fewer slips, fewer incidents on site — as a design outcome of the geometry you specify.
Safety grating walkways, any length
Send your walkway layout — panels are cut to the run, up to 6 m long, with openings and surface matched to who walks there. A surface that grips, panel after panel, over the whole route.
Galvanized safety grating, mill cert with it
Hot-dip galvanized to ASTM A123 / ISO 1461 for outdoor duty, with a mill test certificate to EN 10204 3.1 on every batch — material documentation, not slip-test claims.
Zones and routes
Where Safety Grating Walkways and Floors Work
Start from the hazard in the zone — water, oil, heels, wheels or a level change — then set the four levers to answer it. These are the zones safety grating is specified for most.
Wet plant floors & washdown
Serrated tops plus open mesh that drains as it is walked on — food, chemical and washdown bays.
Stairs, ramps & escape routes
Serrated treads with a visible nosing on every leading edge — the geometry used on industrial and escape stairs.
Walkways & platforms
Pedestrian routes on close mesh; access routes that see trolleys on heavier bars — one line covers both.
Public & kerbside zones
Heel-proof close mesh and banded edges where the public meets the panel — tree pits, trench runs, forecourts.
Specifications
Safety Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers welded; 11 / 11 mm close mesh press-locked |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m, cut to your walkway runs |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Edge options | Banded edges, stair nosing, end plates; toe plates as sourced companions |
| Stock designation | 19W4 and custom equivalents |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Welded panels produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Safety Grating Built Right, Cut and Banded to Your Drawings
Send your drawing
Walkway layout, zone list, load specs, quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Send your zones, panel sizes and quantities — an itemized quote lands within 24 hours, free drawing review included.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Ask for safety grating pricing today — samples ready in 5–7 days.
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What makes a grating a safety grating?
Safety in a grating spec is four levers set together, not one product: surface geometry (serrated or plain bearing-bar tops), opening size (30/40/60 mm welded centers, or 11/11 mm close mesh for heel-proof floors), load class (bearing bars from 20×3 mm to 100×8 mm), and edge detailing such as banding and nosing. Match all four to the zone and the panel is a safety grating.
Do you supply slip-resistance test reports?
No. Safety on this page is surface geometry, not a tested rating — we do not claim slip-test certificates or coefficient values. What arrives with every order is material documentation: a mill test certificate to EN 10204 Type 3.1, the factory inspection report and a Declaration of Conformity — certified and tested, reports on request.
Can safety grating be ordered in custom sizes, and how fast?
Yes — panels are cut and banded to your drawings, up to 1.25 m wide and 6 m long, in Q235B, SS304 or SS316, black or hot-dip galvanized. Samples ship in 5–7 working days, production runs 15–25 working days after drawing confirmation, and your itemized quote lands within 24 hours.
