Heavy Duty Steel Grating Manufacturers
Work direct with the factory. Flexible scheduling, fast answers on grating manufacturer.
Itemized quote within 24 hours · Free drawing and load review included
Factory-direct, no middlemen
Buy from the mill that forms the bars
Certified & tested
Reports on request, MTC EN 10204 3.1 with every order
Samples in 5–7 days
Production in 15–25 working days, quote within 24 hours
FOB Tianjin
About 400 km to port, shipped worldwide, EXW / CIF negotiable
Capability checklist
How to Evaluate Heavy Duty Steel Grating Manufacturers
Heavy duty grating is bought on trust: wheels, loads and people stand on the panels for years. Before you pay any deposit, run the same six checks we would run on ourselves — then read how this factory answers each one.
| Checklist item | What to ask any maker | How Dengtai answers |
|---|---|---|
| 1 · Forming process for wheel loads | How are panels formed, and can the joints work loose under repeated wheel impact? | Electro-forging fuses every bearing-bar / cross-bar intersection under pressure in one pass — a single solid panel. Close-mesh panels run on our press-locking machine. Both processes in-house. |
| 2 · Bar range toward 100×8 mm | What is the top of the bearing-bar range, and how close can the centers go? | Bearing bars from 20×3 mm up to 100×8 mm, plain or serrated, at 30 / 40 / 60 mm centers. Heavy duty means bigger bars and closer centers — not a thicker coat of paint. |
| 3 · Load-calc support with the quote | Do span and deflection checks arrive with the quote, or only after you order? | Send clear spans, wheel or uniform loads — the panel recommendation and load check come back inside the 24-hour quote. Full load tables are provided with your quote, not held back. |
| 4 · Material traceability | Will you see mill test certificates by heat number before you pay? | MTC to EN 10204 Type 3.1 for Q235B, SS304 and SS316, verified at goods-in — the first of our five QC stages — and reissued with every shipment. |
| 5 · Weld inspection inside QC | Where does weld inspection sit in the quality plan, and who signs it off? | Weld points are 100% visually inspected plus sampled on every batch, with reference to ANSI/NAAMM MBG 531 practice. A factory inspection report travels with the goods. |
| 6 · Audit access | Can I walk the workshop before the first order? | Factory audits are welcome — walk the lines, meet the QC desk, review files on demand. A maker who refuses an audit is telling you something. |
Six yes answers is a supplier worth a trial order. Send your loads and drawings — we will answer all six in writing inside the 24-hour quote.
Heavy duty basics
What Actually Changes in Heavy Duty Panels
1 · The bar section grows
Load capacity lives in the bearing bar. Ask a maker where their range tops out — ours runs from 20×3 mm pedestrian stock up to 100×8 mm wheel-duty bars, plain or serrated.
2 · The centers close up
Closer bearing-bar centers share point loads across more steel. Our spacing runs at 30 / 40 / 60 mm centers — the 30 mm option is the one to specify under forklift and truck wheels.
3 · The edges get banded
Heavy duty panels are cut and banded to your drawings so no raw bar end carries a wheel load. Banding, notching and nosing are done in-house before galvanizing.
Why this factory
Heavy Duty Steel, No Middlemen — Answers in 24 Hours
Direct from the grating maker
You buy from the workshop that forms, welds and inspects the panels — no trading desk between your drawings and the production schedule. Flexible scheduling, small MOQ trial orders welcome.
Quick-reply heavy duty steel
An itemized quote within 24 hours, including a free review of your drawings and loads. Fast answers are how a small, focused factory competes — and how you keep your schedule.
Heavy duty steel with MTC 3.1
Certified & tested, reports on request: mill test certificates to EN 10204 Type 3.1, a Declaration of Conformity per destination and a factory inspection report with every order.
Product range
Four Product Lines, One Grating Manufacturer
A maker worth evaluating can cover your whole bill of materials, not just one mesh. These are the lines that run in our workshop — a one-stop range for distributors and project buyers.
Welded line

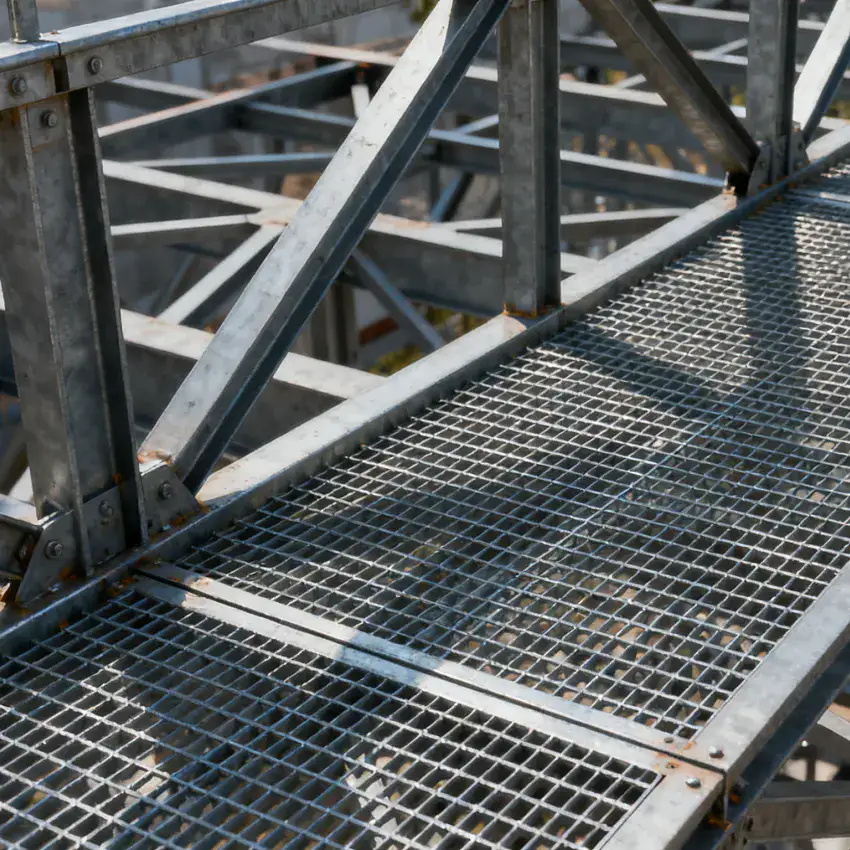

Electro-forged bar grating — the workhorse under wheel loads, galvanized or serrated.
View line →Press-locked line
No-weld close mesh down to 11 / 11 mm for trench covers and fine floors.
View line →Stair treads
Welded or press-locked treads, banded with nosing options to your sizes.
View line →Stainless line
The stainless steel grating manufacturer option: SS304 / SS316 for corrosive plants and washdown floors.
View line →Specifications
Heavy Duty Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers |
| Cross bar | Twisted square or round, per specification |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Heavy duty reference | Produced to ANSI/NAAMM MBG 531, heavy duty panels to MBG 532 practice |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Load tables & calculators → · Heavy duty grating fundamentals →
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531 & 532
Standard and heavy duty panels produced to MBG 531 / MBG 532 reference practice, with weld inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Working with us
From Loads and Drawings to First Shipment
Send loads, spans and drawings
Panel sizes, wheel or uniform loads, quantities — or just photos and a sketch. Drawing and load review is free, and audit requests are welcome at this stage.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small MOQ trial orders welcome, so you can test the maker before the container.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Vet Us as Your Heavy Duty Steel Grating Manufacturers
Send loads, clear spans and quantities — an itemized quote lands within 24 hours, samples in 5–7 days. Judge us against the checklist above.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
How do I verify a heavy duty grating manufacturer before ordering?
Ask for the things a real maker can produce quickly: a factory audit date, mill test certificates to EN 10204 Type 3.1 for your material, and weld inspection inside the QC plan. We accept factory audits and send the MTC, a DoC per destination and a factory inspection report with every order.
What lead times should heavy duty steel grating manufacturers quote?
A maker with in-house forming answers fast: an itemized quote within 24 hours including drawing review, samples in 5–7 working days, and production in 15–25 working days after drawing confirmation with hot-dip galvanizing included. Rush production in 10–15 days is possible with a surcharge.
Do you accept small trial orders of heavy duty grating?
Yes — small trial orders are welcome, and they are the safest way to test a new supplier. Full-container orders are calculated per loading plan, so you only pay for the steel you ship.
