Metal Grate Panel
Grate panel in welded or press-locked steel, made to your specs.
Itemized quote within 24 hours · Free drawing review included
Panels from our own lines
Welded and press-locked panels, one factory
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Fixing the panel down
Clip Fixing or Welding: How Your Grate Panel Anchors
The fixing method is a panel-level decision you make before ordering, because it changes the banding and the edge preparation. Here is the honest trade-off.
| Dimension | Clip FixingRemovable | Welding to Supports |
|---|---|---|
| How it works | Saddle clips and bolts clamp each panel to the support steel — no heat on site | Panel edge or bearing bars welded directly to the supporting structure |
| Removability | Lift a panel in minutes for access to drains, cables or valves below | Permanent; cutting is needed for later access |
| Coating care | Keeps the hot-dip galvanized layer intact — no retouching needed | Weld burns local zinc; repaired with zinc-rich paint after fitting |
| Best suited to | Walkways, platforms, trench covers and any floor with services below | Vibration duty, heavy wheel loads, small or irregular panels |
| Panel preparation | Supplied with fixing layout; clips shipped as accessories with your order | Plain banded edges prepared for site welding |
| Our supply | Clips sourced as matched accessories — never a hidden extra on the quote | Welding is done by your site crew; we prepare edges to suit |
Not sure which fixing suits your floor? Send your drawings — we will spec it inside the 24-hour quote.
Panel anatomy
Read a Grate Panel: Bearing Bars, Cross Bars, Banding
Every metal grate panel — welded or press-locked — is the same four decisions: dimensions, load direction, banding and fixing. Get these right on the drawing and the floor goes together without surprises.
Schematic panel plan — not to scale. The bearing bars are the main load-carrying members; the banding bar closes the ends of the panel and gives a safe, tidy edge.
Four decisions on every panel order
Panel dimensions
Standard panels run up to 1.25 m wide and 6 m long. Any size below that is cut to your layout, so large floors become several panels butt-jointed on supports — fewer joints, straighter runs.
Load direction — mark the arrows
Bearing bars must span across your supports, because they carry the load. Draw arrows on your layout in the direction of traffic; our drawing review checks them before anything is cut.
Banding type
Flat-bar banding closes the panel ends and is the default. A raised toe plate is optional for floor edges where small objects must not be kicked over the side.
Fixing method
Removable floors take saddle clips; permanent, vibrating or wheel-loaded floors are welded. See the comparison above — the choice changes the edge preparation.
Why buy factory-direct
Why Buyers Order Metal Grate Panels Factory-Direct
Factory-direct, FOB Tianjin
Buy the panel from the mill that cuts, bands and packs it — about 400 km from Tianjin Port. FOB as standard, itemized quote on request, no trading-company margin.
Heavy-duty and anti-slip options
Bearing bars from 20×3 mm up to 100×8 mm for wheel loads, plain or serrated. A serrated grate panel keeps its grip on ramps, dock edges and washdown floors.
Custom panels from small MOQ
Any panel dimensions cut and banded to your drawings. Sample panels ship in 5–7 working days, and small trial orders are welcome before you commit to a full floor.
Applications
Where a Grate Panel Earns Its Keep
Open mesh that drains, ventilates and sheds debris — every steel grating panel in this range is cut to the layout it serves.
Platforms & mezzanines
Clip-fixed panels over plant equipment, with lifting access for maintenance.

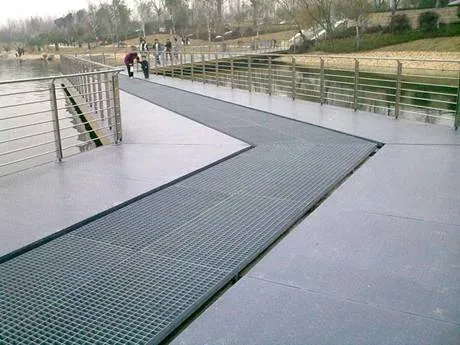

Walkways & catwalks
Narrow runs cut panel by panel; arrows keep every bearing bar across the supports.
Trench & pit covers
Banded panels sized to the clear opening, removable on clips for drain cleaning.
Treads & landings
Serrated panels for dock stairs and landings, banded and drilled to your stringer layout.
Naming note: buyers also search wire grate panel and steel grating panel for this product family. If by wire grate panel you mean light welded-wire mesh rather than bar grating, say so in your RFQ — our nearest in-house match is press-locked close mesh at 11 / 11 mm, and we will tell you honestly if that fits.
Specifications
Metal Grate Panel Specifications
| Parameter | Range / options |
|---|---|
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers; close mesh 11 / 11 mm press-locked |
| Construction | Welded (electro-forged) or press-locked |
| Banding | Flat-bar banding standard; toe plate optional |
| Fixing | Saddle clips (accessory) or welded to supports |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Custom sizes | Cut and banded to your drawings, free drawing review |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Load tables & calculators → · Clips & fixings for panel installation →
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Panels produced to MBG 531 reference practice, with weld and joint checks on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Grate Panels Cut and Banded to Your Drawings
Send your panel layout
Panel sizes, load-direction arrows, banding and fixing plan — or just a sketch and photos. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote on Metal Grate Panels
Get a factory quote in 24 hours — custom grate panels from small MOQ, free drawing review included.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Metal Grate Panel Questions
What panel sizes can I order?
Standard panels run up to 1.25 m wide and 6 m long, and every panel is cut to your drawing — notches, openings and banded edges included. Larger floors are laid out as multiple panels butt-jointed on supports.
Which way do I mark the load direction on my drawing?
Draw arrows in the direction of traffic: the bearing bars must run across your supports, because they carry the load. Our drawing review checks the arrows on every order before production starts.
Should the panels be clipped or welded?
Clips keep panels removable and protect the galvanized coating — we supply them as accessories with your order. Welding suits permanent floors under vibration or wheel loads; tell us your fixing plan and we band and drill panels to match.
