Factory-direct steel gratings & stair treads, shipped worldwide
Galvanized Grid
Galv Grid: every batch ships with traceable mill test certificates.
Itemized quote within 24 hours · Free drawing review included
Zinc applied after fabrication
2–3 day HDG cycle at our certified partner, inside the production window
Certified & tested
MTC EN 10204 Type 3.1, coating sampled to ASTM A123 / ISO 1461
Samples in 5–7 days
Production in 15–25 working days, galvanizing included
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Material comparison
Steel Grid Material Comparison
Material is the first filter in any grid spec. Pick the environment first, then the corrosion demand, then the cost level — this table compresses that decision into three steps, with the hot-dip galvanized row highlighted as this page's material. Every row can be built as an open grid in our workshop.
| Material | Corrosion protection | Typical environments | Relative cost level | Documents & checks |
|---|---|---|---|---|
| Hot-Dip Galvanized Q235B | Zinc bonded to the steel after fabrication; shields cut edges and scratches | Outdoor, municipal, wet sites | Moderate | MTC per heat + coating sampling to ASTM A123 / ISO 1461 |
| Black carbon steel (Q235B) | None as-supplied — needs coating on site or mill oil for transit | Indoor floors, or fabricator-finished work | Lowest | MTC per heat |
| SS304 stainless | Alloyed chromium oxide film through the full section | Food plant, chemical washdown, clean interiors | Higher | MTC per heat, grade traceable |
| SS316 stainless | Adds molybdenum for chloride-rich exposure | Marine, coastal, saline mist | Highest | MTC per heat, grade traceable |
Not sure which material fits your site? Send your drawings — we'll spec it inside the 24-hour quote.
Grid terminology & formats
"Grid" Is Grating — and the Grid Format Chooses the Duty
Municipal and fencing buyers write "galvanized grid" or "galvanized steel grid" on their RFQs; the drawings that follow describe steel grating — load-bearing bars and cross bars locked into a regular open mesh, then zinc coated. Here is the bridge between the two vocabularies, and the geometry decision that follows it.
The terminology bridge
- Galvanized grid — an open-grid steel grating panel, hot-dip galvanized after fabrication
- Galvanized steel grid — the same panel, named by its material: Q235B bar grid under zinc
- Grid mesh — the same product with the emphasis on opening geometry — see Galvanized Grid Mesh for the mesh-first view
Whichever term your RFQ uses, it lands on the same quote desk here — welded or press-locked, Q235B or a grade option, zinc to ASTM A123 / ISO 1461.
Mesh geometry under HDG protection

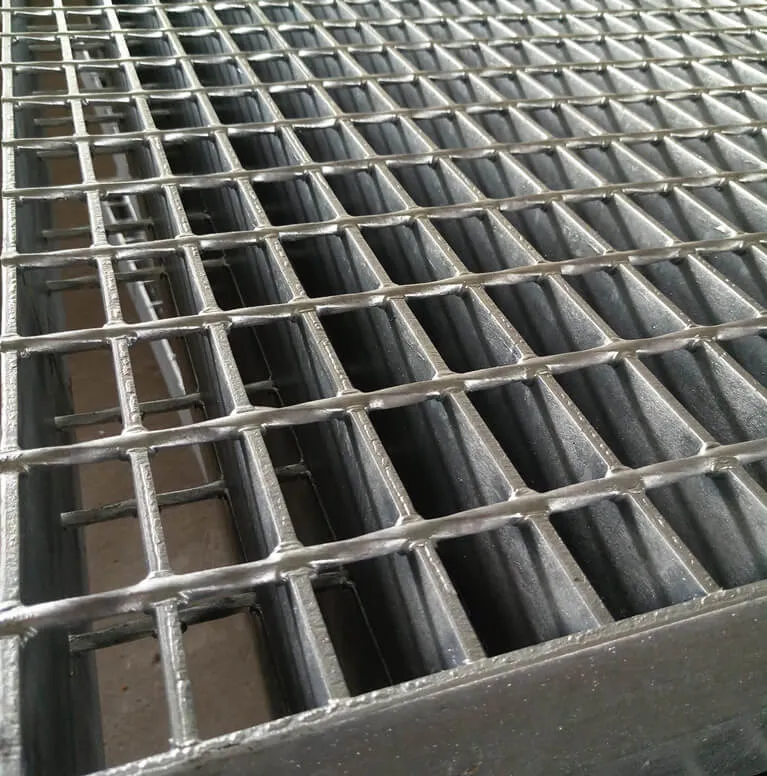

Two constructions carry the outdoor grid catalog: welded grids at 30 / 40 / 60 mm centers for drainage and load, and press-locked close mesh down to 11 / 11 mm where heels, litter or small debris must not pass. Because panels are galvanized after cutting and banding, the zinc covers every fresh edge of the chosen geometry — see press-locked construction and welded construction.
Why outdoor duty pairs grid and zinc
The open grid sheds rain, snow and spills instead of holding them against the steel; the hot-dip zinc keeps the mesh sound through road salt, washdown humidity and freeze-thaw. One material decision — galvanized Q235B — covers trench covers at street level, tree pits on sidewalks and fence infill on exposed sites.
Rust-resistant, not rust-proof language: no coating makes steel immortal, but batch-sampled HDG is the honest outdoor default.
Why specify galvanized
Why Buyers Specify a Galvanized Grid
Factory-direct grid, no middlemen
You buy galvanized grid panels straight from the mill, wholesale — not through a trading desk — and every batch is traceable to its heat through mill certs ready to preview before you commit.
Made to spec — any size, any grade
Grids are cut and banded to your drawings before galvanizing, so every edge is coated. Q235B is the standard base, grade options are quoted to order, and small MOQ trial orders are welcome.
Rust-resistant zinc, heavy-duty ready
Hot-dip galvanizing builds a corrosion-resistant zinc layer that also shields cut edges — the finish wet sites need. Heavier bar sections for wheel loads are quoted from the same drawings.
Applications
Where a Galvanized Grid Works Outdoors
The outdoor duty trio — trench covers, tree pits and fence infill — plus the open-grid floors that share their weather. All four ship from the same galvanized Q235B grid program.
Trench covers
Roadside and municipal trench drains — rain, de-icing salt and washdown. See trench drain covers.
Tree pits & sidewalk grids
Close-mesh panels at paving level — water through, heels and litter out, roots unharmed.
Fence & gate infill
Rigid open-grid infill for posts and rails — sight lines kept, wind loads passed, panels cut to bay size.
Outdoor walkways & platforms
Open-grid floors that shed rain and ice for plant access and yard walkways. See walkway grating.
Specifications
Galvanized Grid Specifications
| Parameter | Range |
|---|---|

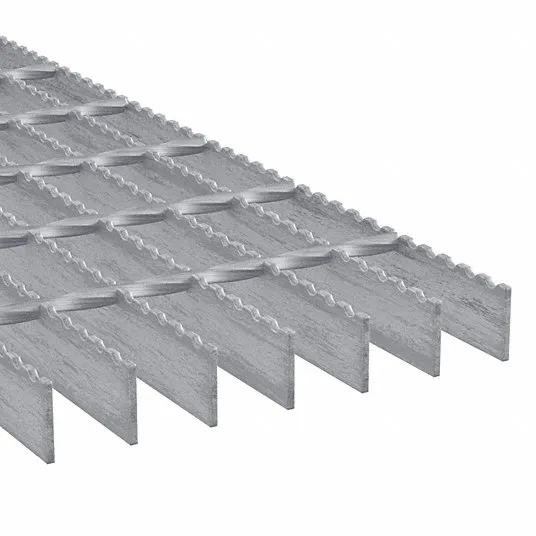

| Grid construction | Load-bearing bars + cross bars, welded or press-locked |
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Grid openings | 30 / 40 / 60 mm centers · close mesh to 11/11 mm |
| Panel width × length | Up to 1.25 m × 6 m |
| Base material | Q235B carbon steel · SS304 / SS316 on request |
| Finish | Hot-dip galvanized after fabrication (ASTM A123 / ISO 1461) |
| Stock designation | 19W4 and custom equivalents |
Mill Test Certificates (EN 10204 Type 3.1)
We ship mill test certificates (EN 10204 Type 3.1) with every shipment, so the Q235B behind your galvanized grid is traceable to its heat — verified at goods-in, the first of our five QC stages. What travels with the panels:
- Mill test certificate to EN 10204 Type 3.1, per heat
- Coating thickness sampling to ASTM A123 / ISO 1461, per galvanized batch
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Certifications & documents → · Coating standards explained →
Standards & compliance
Produced to Recognized Standards — Documents on Request
ASTM A123 / ISO 1461 HDG
The governing hot-dip galvanizing standards — coating thickness is sampled on every galvanized batch before grid panels are released.
ANSI / NAAMM MBG 531
Welded grid panels produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Custom Galvanized Grids, Cut and Banded to Your Drawings
Send your drawing
Grid sizes, openings, load specs, quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome, material certs ready to preview.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation — the 2–3 day galvanizing cycle included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Send your galvanized grid specs for a factory quote — material certs ready to preview before you commit. Itemized reply within 24 hours, free drawing review included.
- Five-stage QC, from MTC verification at goods-in to post-galvanizing coating checks
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines and the galvanizing route before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
Is a galvanized grid the same as galvanized grating?
Yes — in buying language the two names cover the same product. A galvanized grid is an open-grid steel grating panel: load-bearing bars and cross bars locked into a regular mesh, then hot-dip galvanized after fabrication. We quote grid and grating requests from the same drawings, in welded or press-locked construction.
What certificates come with a galvanized grid order?
You receive mill test certificates (EN 10204 Type 3.1) with every shipment, covering the Q235B heat chemistry, plus a factory inspection report. The zinc coating itself is sampled to ASTM A123 / ISO 1461 on every galvanized batch before release.
Which grid openings suit trench covers, tree pits and fence infill?
Trench covers usually run 30 / 40 / 60 mm centers to balance drainage with wheel and foot loads. Tree pits call for closer press-locked mesh — down to 11 / 11 mm — to keep heels and litter out of the soil. Fence infill is governed by post spacing and wind load. Send the application with your drawing and we will recommend the geometry.
